The Ringlock System is an advanced modular Scaffolding system celebrated for its ease of use, stability, and versatility. Featuring a unique ring-and-lock design, this system allows for quick assembly and adjustment, making it ideal for a wide range of construction and industrial applications. The system comprises vertical standards, horizontal ledgers, and various other components that interlock through a ring-and-pin mechanism, providing a robust and secure scaffold structure.
The core feature of the Ringlock System is its ring-and-lock mechanism, where horizontal ledgers and diagonal braces lock into vertical standards using a circular ring and pin connection. This ensures quick and secure assembly.
Highly modular, the Ringlock System includes components that can be easily combined and configured for different scaffold setups.
Allows for easy height and width adjustments, accommodating various project requirements and site conditions.
Suitable for a range of applications, including access Scafform, formwork support, and shoring.
Made from high-strength steel, the components offer durability and resistance to heavy loads and harsh environments.
The design facilitates fast assembly and disassembly, reducing labour time and increasing efficiency on site.
The Starter/Base collar is the beginning vertical member of the Ring lock Scaffolding system. It sits upon a fixed or adjustable base.
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
GIRBC |
0.18 |
1.25 |
Standards are the vertical members of Ring lock Scafform. The standard provides the vertical support for Scafform. The spigot is permanently fixed in place.
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSRV500 |
500 |
2.30 |
|
MSRV1000 |
1000 |
4.50 |
|
MSRV1500 |
1500 |
7.00 |
|
MSRV2000 |
2000 |
9.20 |
|
MSRV2500 |
2500 |
11.50 |
|
MSRV3000 |
3000 |
13.80 |
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSRLO500 |
500 |
2.50 |
|
MSRLO1000 |
1000 |
4.30 |
|
MSRLO1200 |
1200 |
5.00 |
|
MSRLO1500 |
1500 |
5.75 |
|
MSRLO2000 |
2000 |
7.50 |
|
MSRLO2500 |
2500 |
9.00 |
Enhanced Safety The secure ring-and-lock connection reduces the risk of instability and collapse, improving overall safety on site.
Increased EfficiencyQuick and easy assembly and disassembly minimize construction time and labour costs, making it a cost-effective choice.
FlexibilityThe modular and adjustable nature allows for customization to fit various project requirements and building types.
Reduced Inventory NeedsStandardized components reduce the need for a large inventory of different parts, simplifying logistics and storage.
High Load CapacitySupports substantial loads, making it suitable for heavy-duty applications and ensuring structural integrity.

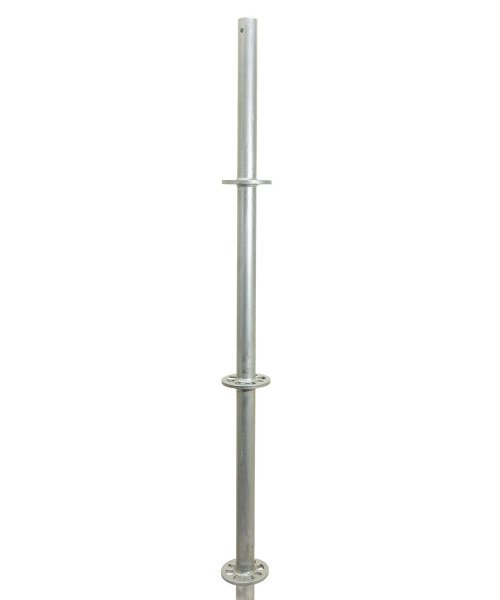

Vertical posts that provide the primary support for the scaffold. They are equipped with circular rings at regular intervals for the attachment of horizontal and diagonal components.

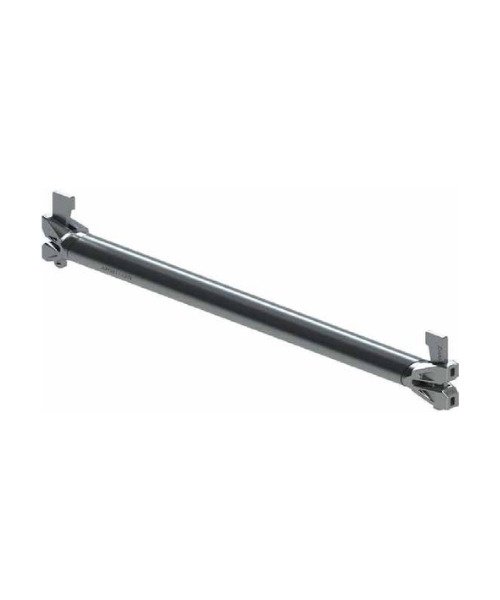

Horizontal bars that connect between standards to provide stability and support for the working platform.

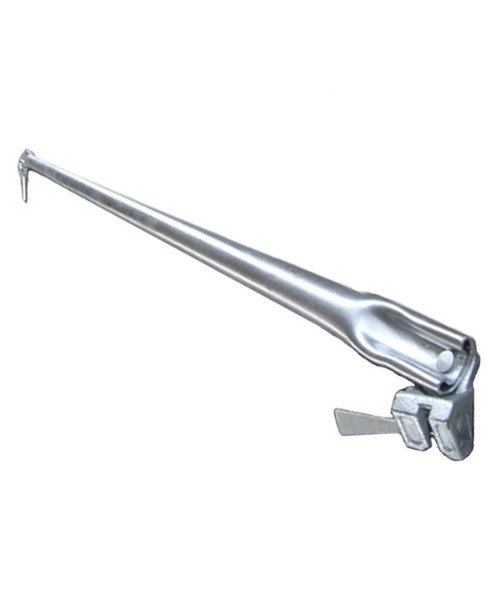

Diagonal members that add stability and prevent swaying or buckling of the scaffold structure.
Plates placed at the bottom of the standards to distribute loads evenly and provide stability on uneven surfaces.

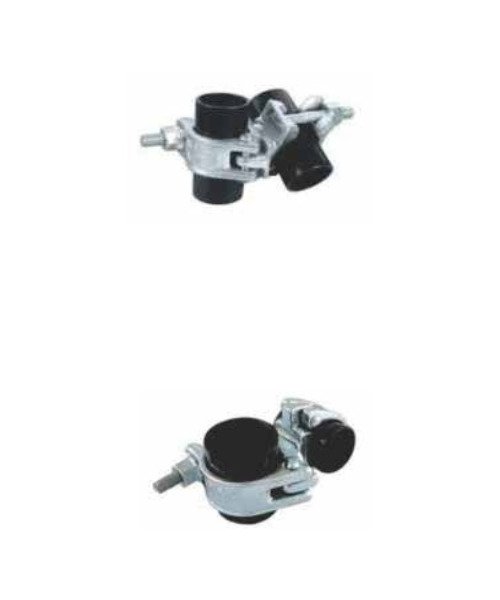

Connectors used to secure horizontal ledgers and diagonal braces to the vertical standards.

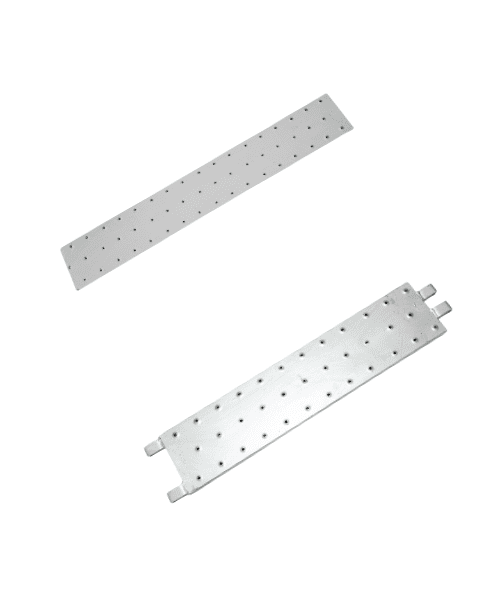

Platforms or boards used to create the working surface on the scaffold, available in various materials such as wood or metal.

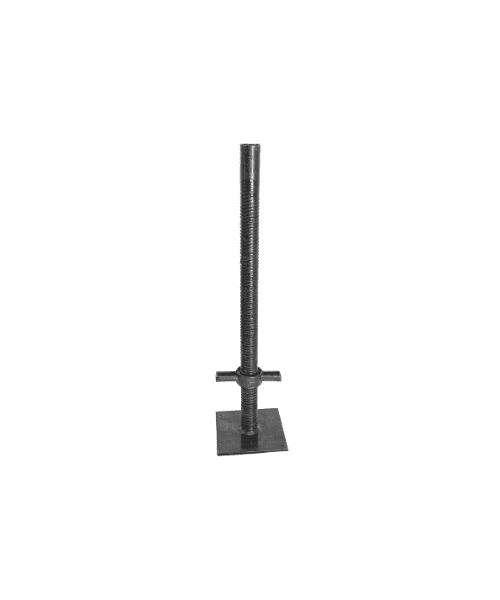

Provide height adjustments for standards to accommodate uneven ground and ensure a level scaffold.
Ideal for general construction, including residential, commercial, and industrial buildings. Useful for both high-rise and low-rise projects.
Provides support for formwork in concrete construction, ensuring proper alignment and stability during curing.
Useful for accessing and working on tall structures, including buildings, bridges, and industrial equipment.
Offers temporary support for structures or elements during construction or renovation activities.

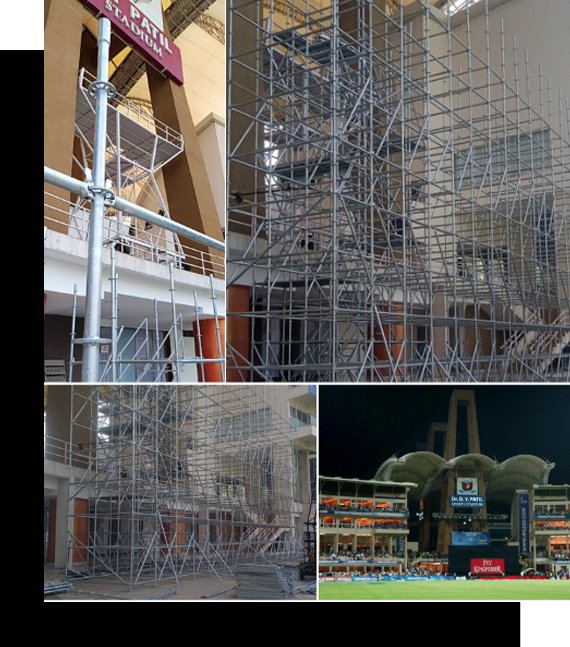

Suitable for constructing stages, viewing platforms, and other temporary structures for events and performances.
The Ringlock System’s combination of innovative design, ease of use, and flexibility makes it a highly effective and popular choice in Scaffolding applications.
